MTSLED Product Detail
Outdoor LED Wall Lights
Outdoor LED Wall Lights Die-cast
Outdoor LED Wall Lights
Die-cast aluminium wall luminaires for building facades, corridors, entrances and commercial exteriors. IP65/IP66 rated with 15+ series across classic and modern profiles.
IP65/IP66 Rated
Full weather protection for permanent outdoor installation
Die-Cast Aluminium
Powder-coated, anti-corrosion, coastal-grade finish
15+ Series
Round, square, up/down, classic — multiple profiles
Custom RAL Finish
Standard black/white/grey + custom RAL for projects
Wall Light Series
Round Classic
THA-WB502 · IP65 · Black/White

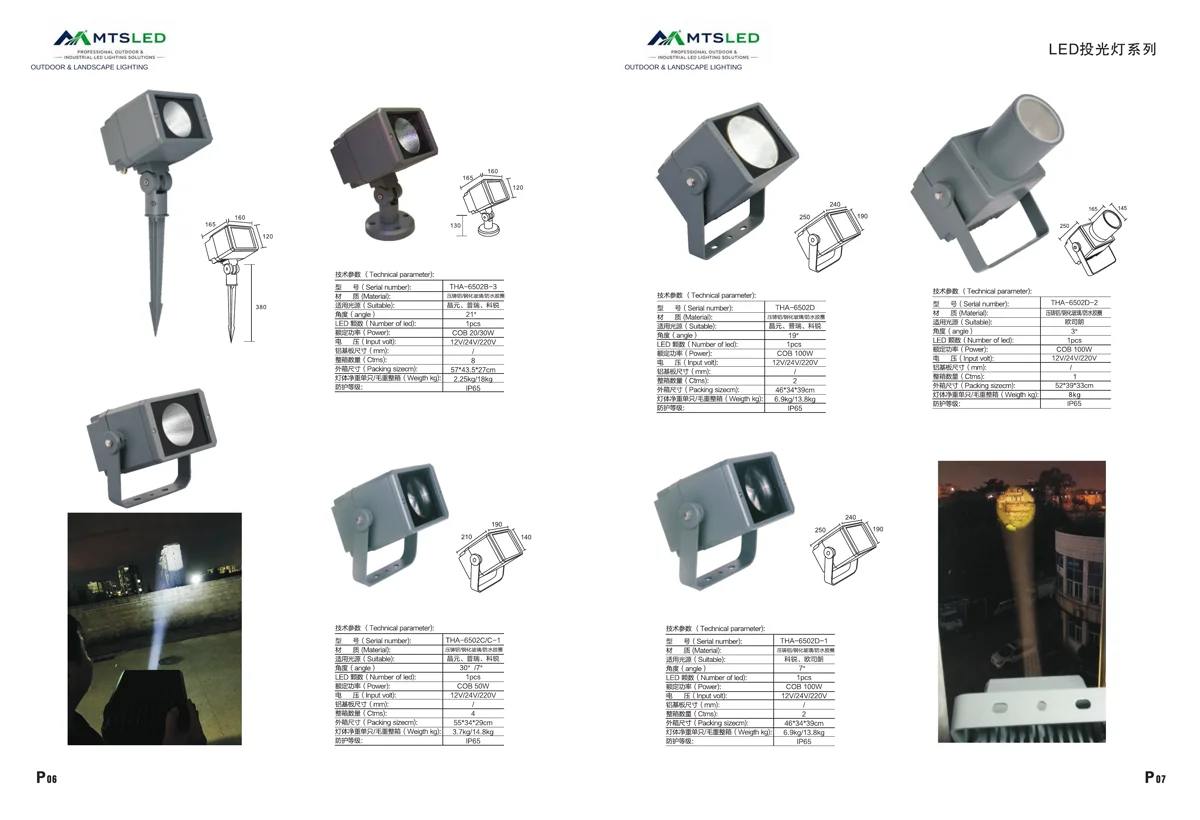

Square Modern
THA-65020 · IP65 · 2700–4000K

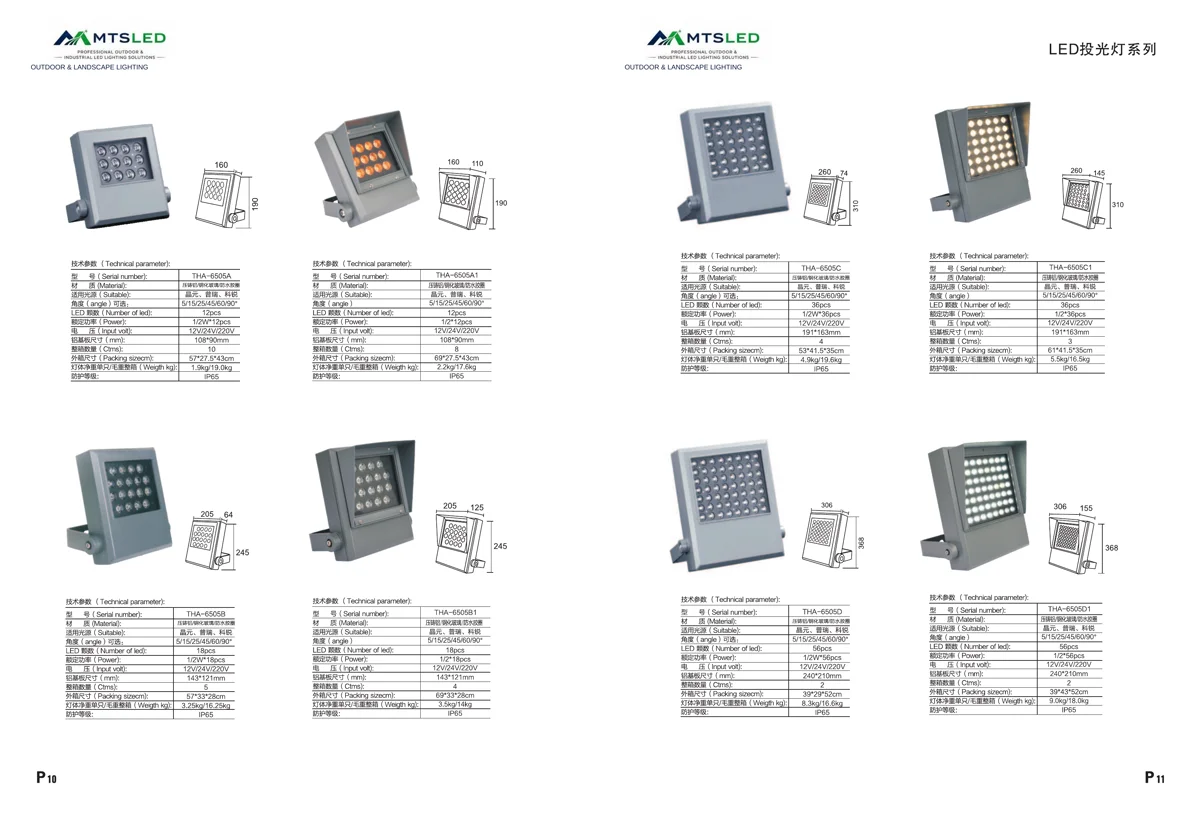

Up/Down Cylinder
THA-65056 · IP65 · Dual Beam

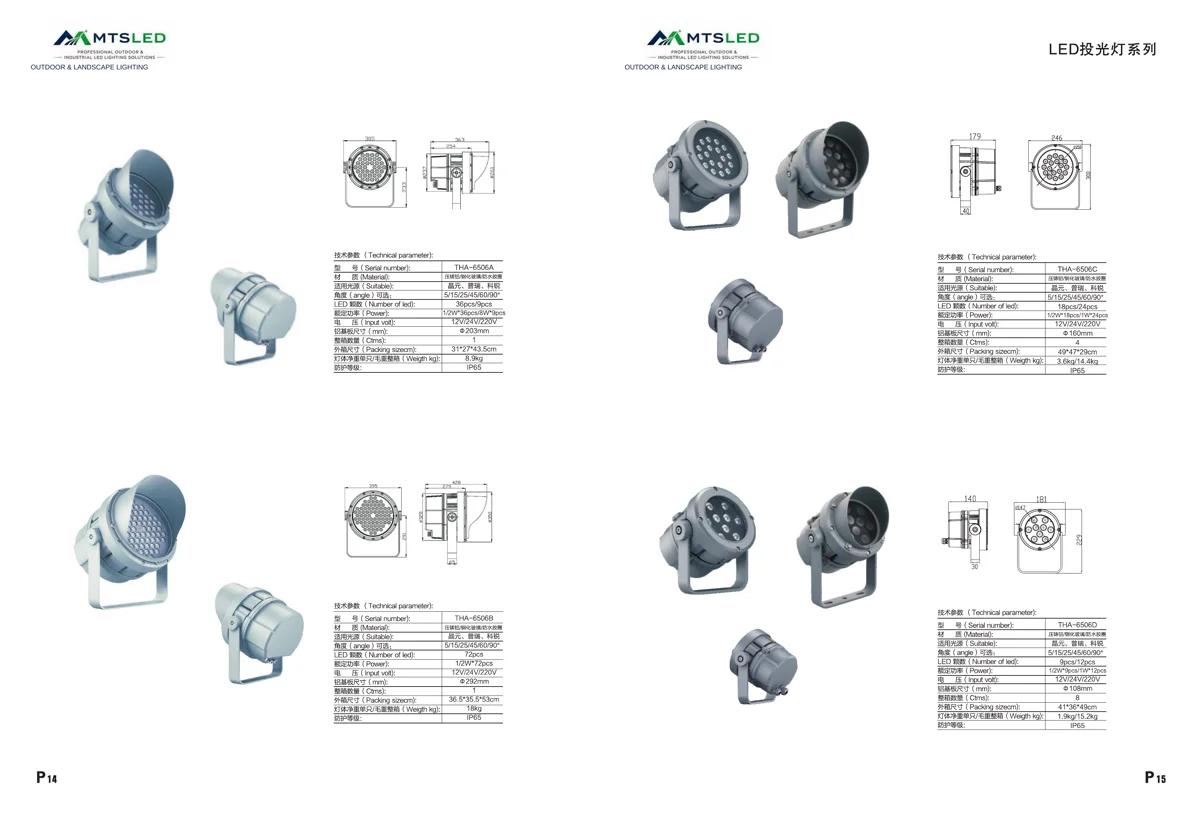

Rectangular Facade
THA-6506A · IP65 · Asymmetric

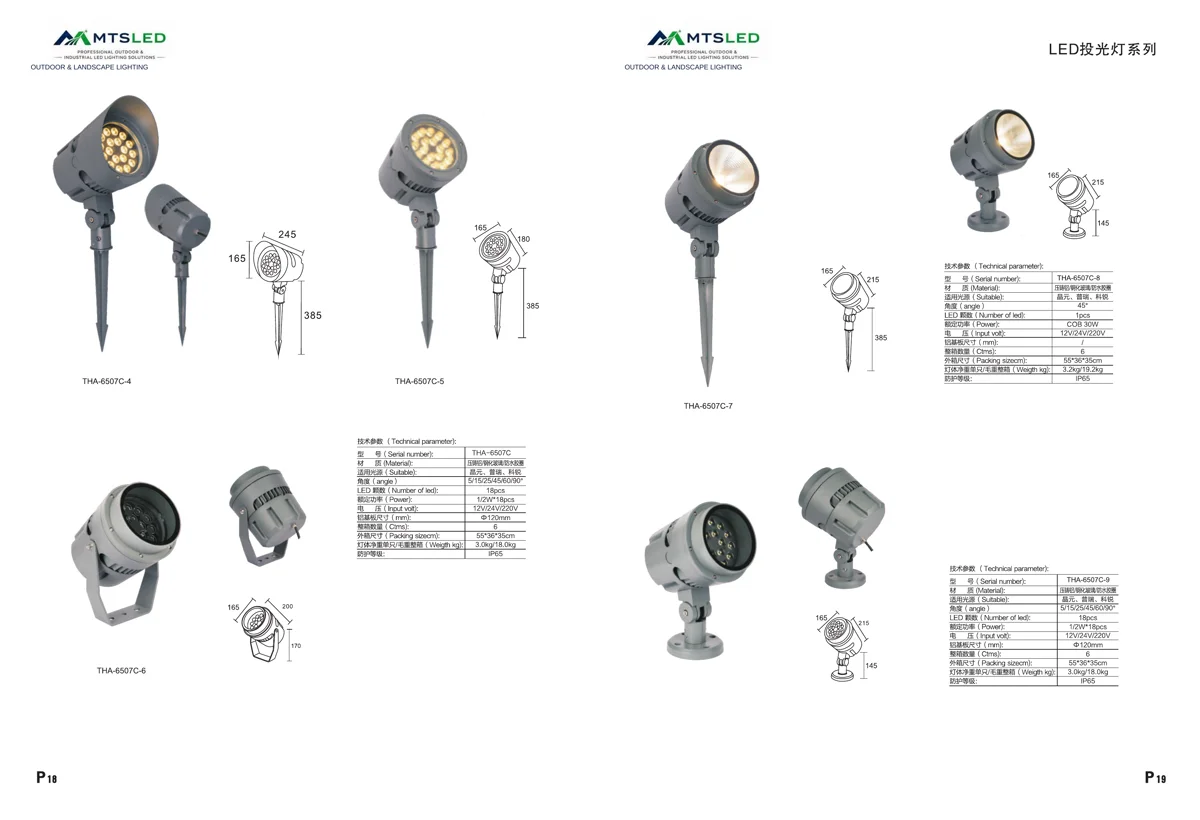

Mini Cylinder
THA-6507C · IP65 · E27

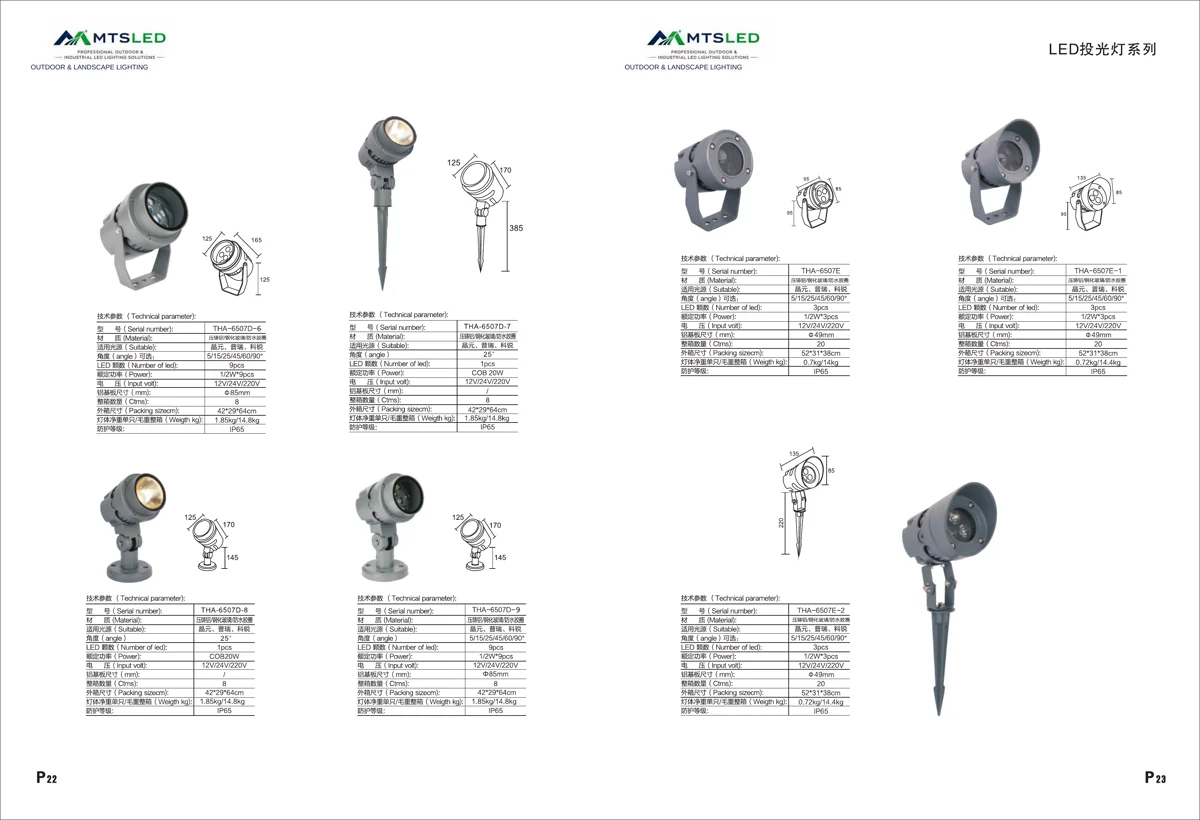

Twin Cylinder
THA-65070 · Dual Head · Warm White

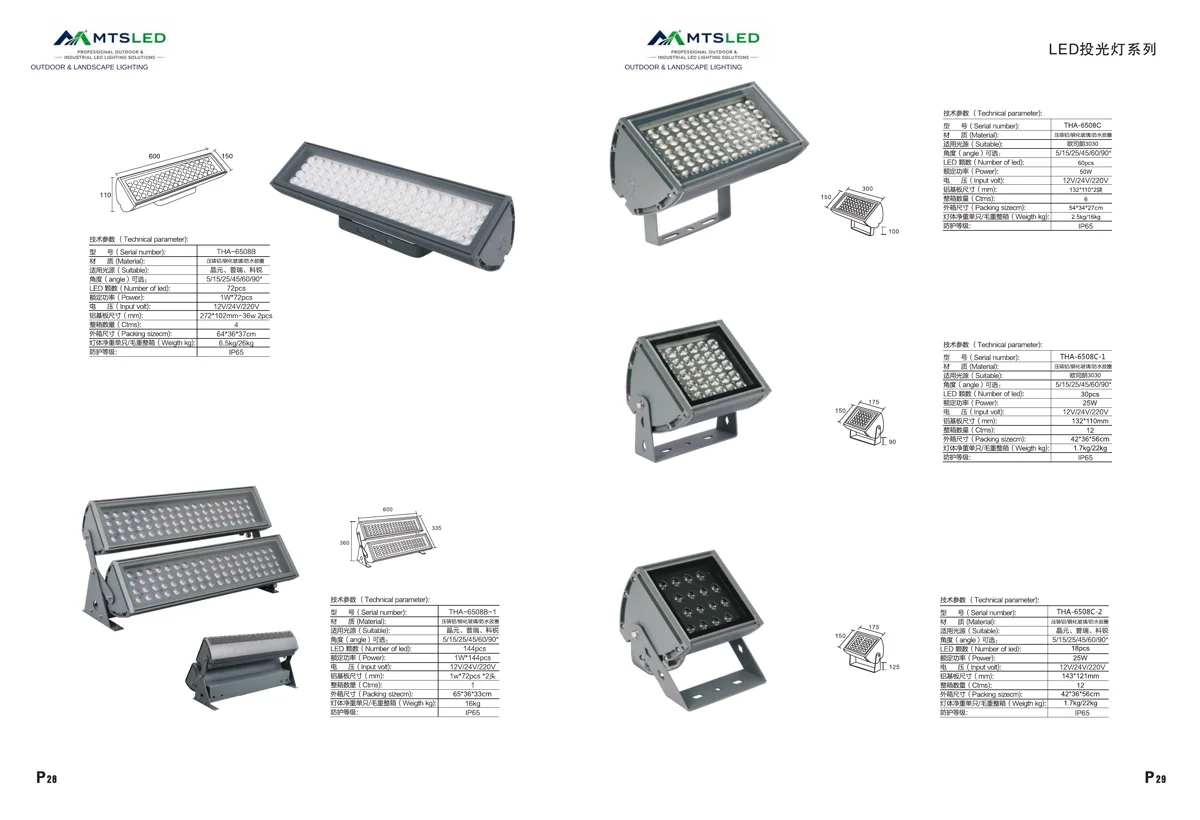

Arc-Top Decorative
THA-65088 · Classic Arc · IP65

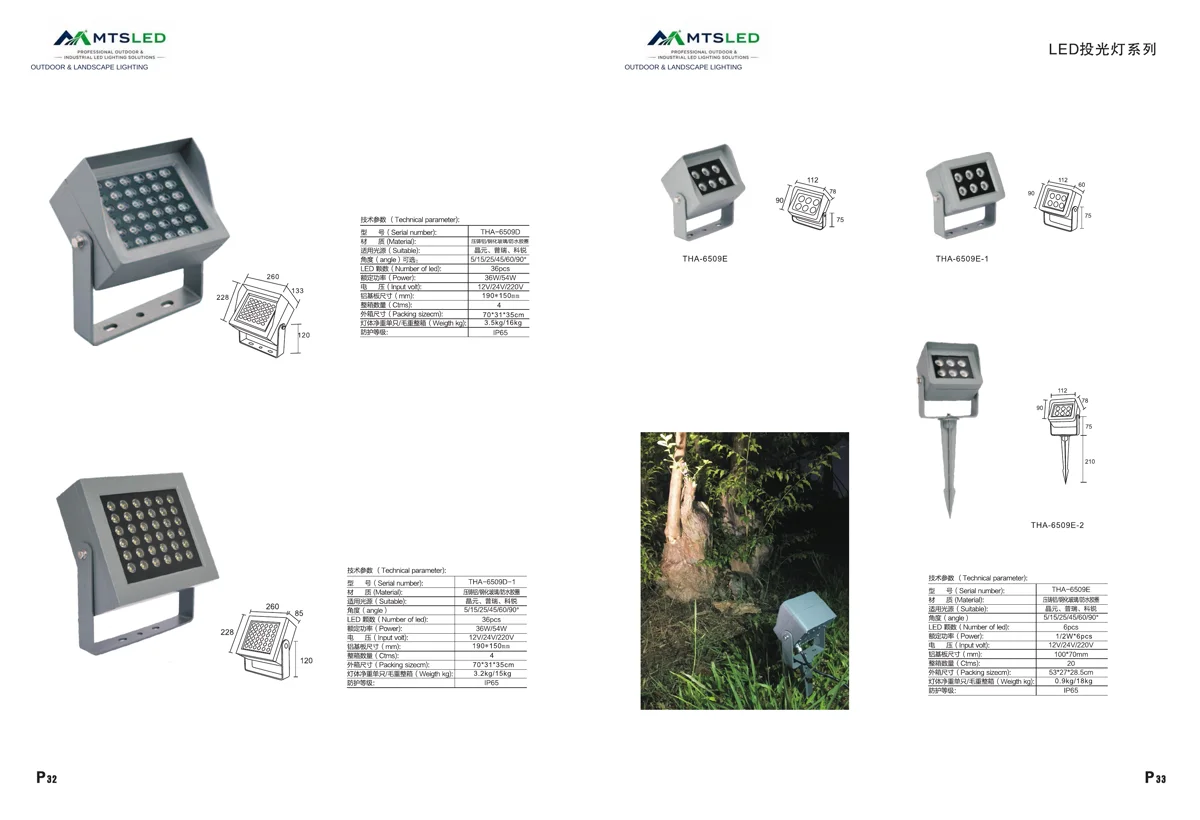

Ellipse Modern
THA-6509E · Oval Profile · 10–24W

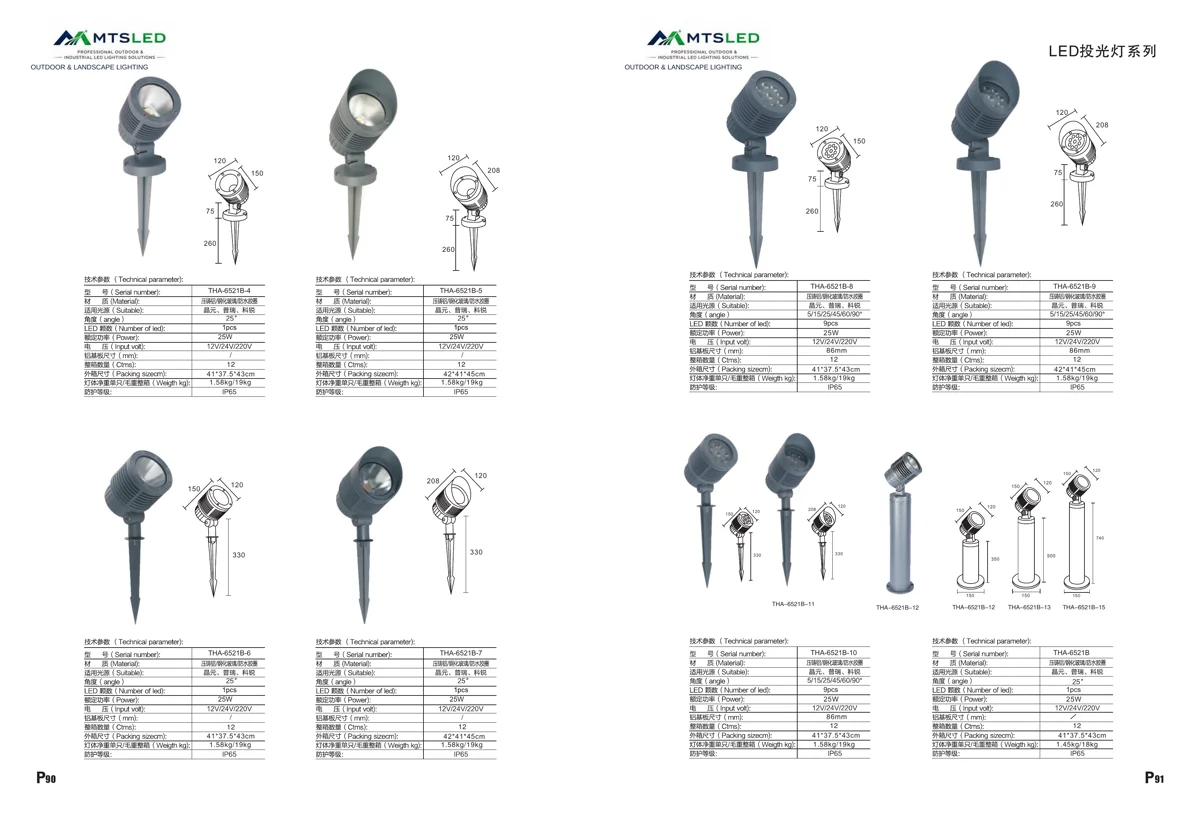

Deep Square
THA-6511C · IP66 · 20–50W
Technical Reference
⚡ Power Range
6W–50W across series · LED COB/SMD · 2700K–5000K CCT options
🛡️ Ingress Protection
IP65 standard · IP66 for heavy-rain/coastal areas · IK06–IK08 impact rated
🏗️ Body & Finish
ADC12 die-cast aluminium · Electrostatic powder coat · Black / White / Grey / Custom RAL
💡 Light Source
Integrated LED or E27 replaceable · COB option for uniform beam · No dark spots
🔌 Input Voltage
AC 85–265V 50/60Hz standard · DC 12V/24V option for solar-compatible projects
🌍 Certifications
CE · RoHS · IP test reports · Custom certification for regional compliance
Project Applications
Building Facades
Commercial and residential exterior wall illumination
Hotel Corridors
Open-air corridors and entrance lighting
Villa Entrances
Decorative wall lights for private residences
Public Buildings
Perimeter and boundary wall lighting
Wall Light Project Quote
Send facade dimensions, quantity, voltage (AC/DC) and target finish. We’ll match models from 15+ series with datasheets.
Next step
Send your project details for product matching
Share product type, quantity, target market, certification requirement and application scenario. MTSLED will prepare the suitable catalog, document or quotation path.
